The BV8042 power management integrated circuit (PMIC) is a highly integrated and efficient integrated circuit.
It powers a wide range of processors including solid-sate drive (SSD) applications, video processors, field programmable gate array (FPGAs), peripherals, and microcontrollers. The PMIC is highly flexible and can be reconfigured via I2C for multiple applications without the need for PCB changes.

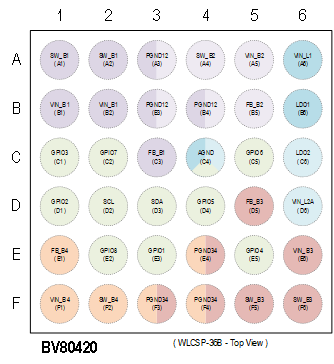

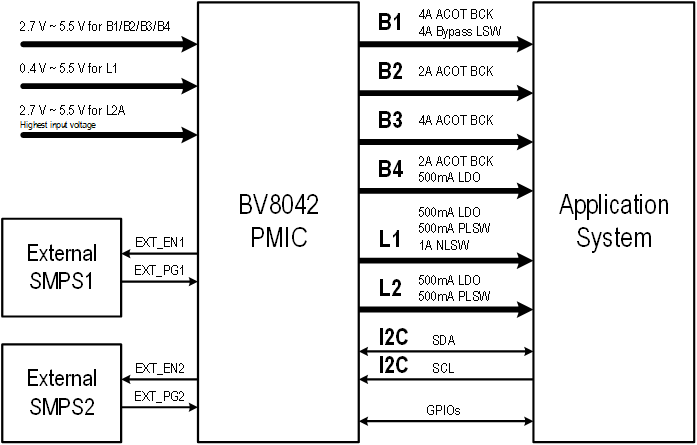

The core of the BV8042 PMIC includes four buck regulators, and two low dropout regulators (LDO). The PMIC integrates power MOSFETs, significantly reducing external component requirements and improving reliability. The bucks use an adaptive constant on-time (ACOT) control architecture to optimize the load transient response with 0.47µH inductor and smaller output capacitors.
The power rail Buck1, LDO1, and LDO2 can be configured as a load switch, and the power rail Buck4 can be configured as LDO. Buck1 is optimized for output voltage close to the input voltage, and Buck3 is optimized for low voltage output. All outputs are highly configurable via the I2C interface.
The BV8042 serial has 8 configurable GPIOs. These GPIOs can be configured for multiple purposes like enable signal for external regulator (EXT_EN and EXT_PG), interrupt (nIRQ), power enable (PWREN), dynamic voltage scaling (DVS) control, etc.
- Input voltage range 2.7 V to 5.5 V
- 4 channel Adaptive constant on-time (ACOT) buck control
- Buck 1 : 4A ACOT buck or 4A bypass load switch
- Buck 2 : 2A ACOT buck
- Buck 3 : 4A ACOT buck
- Buck 4 : 2A ACOT buck or 500mA LDO
- 2 Integrated LDO regulators and load switches
- LDO 1 : 500mA LDO or 500mA P-type load switch or 1A N-type load-switch
- LDO 2 : 500mA LDO or 500mA P-type load switch
- Excellent conversion efficiency at light load
- Work with 0.47µF inductor
- Ultra-low quiescent current
- Integrated power ON/OFF sequence control and flexible sequencing options
- Highly GPIO configurable
- 8 reconfigurable GPIOs which can be 2-state/3-state inputs or push-pull/over-drain outputs
- Regulator operation modes
- Power sequencing options
- Dynamic voltage scaling for controllers
- Programmable reset and power good options
- Interrupt notification
- Configurable power cycle
- Multiple wake-up triggers
- Seamless sequencing of external supplies
- Multiple sleep modes
- SLEEP mode for PS3.5 state
- DEEP SLEEP mode for PS4 state
- I2C interface communication speed up to 3.4MHz
- Solid-State Drive (SSD)
- Field Programmable Gate Array (FPGA)
- Computer Vision
- Portable Audio and Video
